JAEGER Rhino- and Spirometers

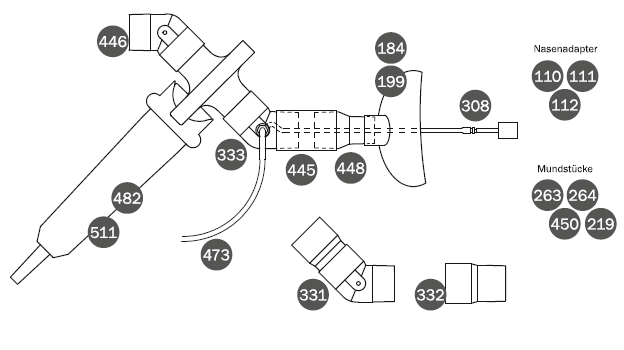

Spare elbow 45° with connection nipple, silicone hose and hose adapter. Suitable for the JAEGER MasterScope Rhino and other spirometry systems from Jaeger.Dimensions: Inner diameter: 30 mm Scope of delivery: 1 manifold evidENT-Shop Article 333Manufacturer: VYAIRE. Manufacturer No. 706188.

Adapter for the Jaeger calibration pump (Care Fusion).Suitable for the calibration pumps 1l and 3l.Features: Inner diameter: 30 mm, material: plastic Scope of delivery: 1 adapterevidENT-Shop Article 445Manufacturer CareFusion.Original number 852353.

Adapter for the JAEGER lung function systems (JAEGER MasterScope and JAEGER MasterScreen) and Ergospirometry/CPET (Oxycon Delta, Pro). Adapts 28 mm outer diameter to 30 mm inner diameter. Dimensions: outer diameter 30 mm, Length: 50 mm, material plastic Scope of delivery: 1 adapterevidENT-Shop Article 420Manufacturer JAEGER / CareFusion.Manufacturer number 852354.

Extension / Adapter single. Suitable for all JAEGER lung function systems: for the MasterScope Rhino, Flowscreen, Rhinoscreen, MasterScreen CS/FRC, MasterScreen Pneumo, MasterScreen IOS MasterScreen PFT, MasterScreen Diffusion, MasterScreen Capno, MasterScreen Paed, MasterScreen BabyBody, MasterScreen Body, ECoScreen, APS, APS pro and others.Features: Inner diameter 30mm to outer diameter 30 mm, material: plastic Scope of delivery: 1 extension.evidENT-Shop Article 332Manufacturer: CareFusion. Original spare part number 852358.

Adapter for the JAEGER lung function systems (JAEGER MasterScope and JAEGER MasterScreen) and Ergospirometry/CPET (Oxycon Delta, Pro). Adapted from 28 mm outer diameter to 30 mm inner diameter. Dimensions: Length: 50 mm, material plastic Scope of delivery: 1 adapterevidENT-Shop Article 449Manufacturer JAEGER / CareFusion.Manufacturer number 852357.

Gasket for flange connections. Spare part for the valve head on the valve control unit for the devices JAEGER MasterScreen Pneumo, Vyntus SPIRO, Vyntus PNEUMO, JAEGER MasterScreen PFT, JAEGER MasterScreen Body, JAEGER MasterScope Body, JAEGER MasterScreen Body/Diff, JAEGER MasterScreen Body/Diff Realtime. Scope of delivery: 1 sealevidENT-Shop Article 525Manufacturer JAEGER / CareFusion.Original article number 851410

P-tube half-shell for the non-heatable pneumotachograph PT 36 for Flowscreen from Jaeger. Without sieve, seals and closing bracket. Material plastic.Note: not suitable for the heatable pneumotachograph.Scope of delivery: 1 half-shellevidENT-Shop Article 528Manufacturer VYAIRE. Manufacturer number 835516

P-tube closure bracket for flow screen from Jaeger. For all portable diagnostics (Flowscreen), all pulmonary function devices.Material: PlasticShipment: 1 PieceevidENT-Shop Article 447Manufacturer VYAIRE. Manufacturer number 835515

A housing shell for the handle. Suitable for the device JAEGER MasterScope PC. A complete handle consists of two shells that are plugged together. Scope of delivery: 1 single housing shellevidENT-Shop Article 482Grip plates for Pt. D 37x177,7mm Rotec ABS1001 Fr Vo Un 7034Original article 835542

Replacement screen "Standard" for pneumatic tachograph PT36 from Jaeger (Care Fusion). Diameter: 67 mm. Scope of delivery: 1 pieceevidENT-Shop Article 529Manufacturer JAEGER / Vyaire. Manufacturer number 700096

O-ring for the plastic P-tube of the pneumatic tachograph PT 36 from Jaeger (Care Fusion). Diameter: 63 x 2 mmTo be used as seal for the PT36 screen.Scope of delivery: 1 O-ringevidENT-Shop Article 530Manufacturer VYAIRE. Manufacturer number 851243.Customs tariff number: 40169300

Measuring tube for choanal pressure, for adapting the nose adapters. For different devices of JAEGER / CareFusion: MasterScope, MasterScope Rhino, MSC MasterScope, MSB MasterScreen Body, MSD MasterScreen Diffusion, MSPFT MasterScreen PFT, MSIOS MasterScreen IOS. Material: silicone.Dimensions: inner diameter: 2mm, length: 1 meter, can be shortened individuallyScope of delivery: 1 hoseevidENT-Shop Article 473Original spare part number 852632

Hose connection with plug nipple for the JAEGER MasterScope Rhino for rhinomanometry. Material nickel-plated. For tubes with inner diameter 3 mm and 2 mm. The tubing connection is located between mask tubing and nose adapter. Scope of delivery: 1 pieceevidENT-Shop Article 308Manufacturer CareFusion. Original spare part REF706189

Silicone tubing for various devices from JAEGER / CareFusion: MasterScope and MasterScope Rhino, for MSB (MasterScreen Body), MSD (MasterScreen Diffusion), MSPFT (MasterScreen PFT).Features: Inner diameter: 3 mm, outer diameter: 6 mm (wall thickness: 1.5 mm), length 50 cm, can be shortened individually, material: siliconeOriginal spare part number 852635.evidENT-Shop Article 309

Hose reduction nipple to connect the measuring hose for choanal pressure at JAEGER devices, e.g. Masterscope Rhino. Color: gold Scope of delivery: 1 reduction nippleevidENT-Shop Article 531Manufacturer JAEGER / CareFusion.Original number 852116

Silicone tubing for various devices from JAEGER / CareFusion: MasterScreen Pneumo (MSP) and MasterScreen BabyBody (MSBB). Dimensions: inner diameter: 2 mm, outer diameter: 6 mm (wall thickness: 2 mm), length: 100 cm, can be shortened individually, color: transparentScope of delivery: 1 hoseevidENT-Shop Article 186Original-Herstler-No. 852633

APS Filter AirLife, for APS Pro and Vyntus APS. Manufacturer JAEGER / CareFusion.Manufacturer number V-892060For single use.Scope of delivery: bag with 70 piecesevidENT-Shop article 959

MicroGard IIC disposable bacterial filter for Jaeger pulmonary function systems (Vyaire). Filters for effective protection of patient, staff and measuring devices against microbial contamination. Recommended for use with the following spirometers: Micro I., SpiroUSB, MicroLoop, MicroLab, Vyntus Spiro. The MicroGard IIC with round connector for use in combination with a separate mouthpiece.Scope of delivery: 1 pieceevidENT-Shop Article 574Manufacturer JAEGER / Vyaire.Manufacturer number V-892384

MicroGard IIC disposable bacterial filter for Jaeger pulmonary function systems (Vyaire). Filters for effective protection of patient, staff and measuring devices against microbial contamination. Recommended for use with the following spirometers: Micro I., SpiroUSB, MicroLoop, MicroLab, Vyntus Spiro. The MicroGard IIC with round connector for use in combination with a separate mouthpiece.Due to the sharp rise in postage costs at the beginning of 2024, the maximum quantity per order for this item is limited to 2 boxes.If you require more boxes, please place multiple orders.Technical data: Measurement quality with optimal performanceScope of delivery: 1 pieceevidENT-Shop Article 574Manufacturer JAEGER / Vyaire.Manufacturer number V-892384

MicroGard IIB filter with integrated oval mouthpiece, suitable for use in spirometry in adults and childrenThe unique positioning aid (utility model registered under no. DE202010009616U1) on the integrated oval mouthpiece helps the patient to position the teeth correctly. The oval shape avoids leakage during lip closure.The MicroGard® filter is used in connection with devices for lung function diagnostics of the brands JAEGER, SensorMedics® and Micro Medical.Due to the sharp rise in postage costs at the beginning of 2024, the maximum quantity per order for this item is limited to 2 boxes.If you require more boxes, please place multiple orders.Scope of delivery: 50 disposable bacteria filtersevidENT-Shop Article 171Manufacturer JAEGER / Vyaire. Manufacturer Number V-892381

Filter Kit (MicroGard IIB + nose clamp) with integrated oval mouthpiece, suitable for use by adults and children.The unique positioning aid (utility model registered under no. DE202010009616U1) on the integrated oval mouthpiece helps the patient to position the teeth correctly. The oval shape avoids leakage during lip closure.The MicroGard® filter is used in connection with devices for lung function diagnostics of the brands JAEGER, SensorMedics® and Micro Medical.Due to the sharp rise in postage costs at the beginning of 2024, the maximum quantity per order for this item is limited to 2 boxes.If you require more boxes, please place multiple orders.Scope of delivery: 80 disposable bacteria filtersevidENT-Shop Article 160Manufacturer JAEGER / Vyaire. Manufacturer Number V-892391

Adapter for connecting MicroGard filters to various Micro Medical spirometers. Suitable for MicroLab, MicroLoop, SpiroUSB, PulmoLife, MicroDiary.Features: Material: Plastic; Outer diameter: 30 mm; Scope of delivery: 1 adapterManufacturer VyaireOriginal number 36-MFA1010.UDI: (01)14250892906697

Mouthpieces suitable for all JAEGER /Care Fusion ergospirometry devices: MasterScreen ECG/ERGO, MasterScreen CPX, Oxycon Delta, Pro, Oxycon Alpha, Champion, Record, Oxycon Mobile, VIASprint, Ergometer. For spirometers JAEGER MasterScope IOS (CareFusion), for Vmax L, Vmax S and Vmax E by SensoMedics (Care Fusion). Also JAEGER Masterscreen MS Pneumo, Vyntus PNEUMO, Vyntus SPIRO, JAEGER Masterscreen MS/ JAEGER Masterscope MSC Body, JAEGER Masterscreen MS Body/Diffusion, JAEGER Masterscreen MS PFT, JAEGER Masterscreen MS IOS, Vyntus IOS APS, Vyntus APS, JAEGER Masterscreen MS CPX, Vyntus CPX.Colour: blue, disposable, connector: ID 30. soft. The mouthpiece is placed directly between the patient and the cardio-pulmonary training device or the pulmonary function test device. Original article V-892893Scope of delivery: bag with 30 piecesevidENT-Shop article 917

Mouthpiece for all JAEGER lung function devices. Disposable item. Scope of delivery: One bag with 25 piecesevidENT-Shop Article 263Manufacturer: Carefusion/JAEGER. Original number 892103

Nose clamp for spirometry made of plastic with interchangeable pads. Material: plastic. Suitable for MicroLab, MicroLoop, SpiroUSB, Flow Screen, SpiroPro, APS, APS pro and ECoScreen.Scope of delivery: 1 nose clip with two padsevidENT-Shop Article 335The use of nose clips is recommended when performing spirometry measurements to prevent exhalation through the nose. The nose pads are disposable and should be changed after each patient. The nose pads can be cleaned with alcohol or disinfectant wipes. Original number 892120

Padding for nose clamps made of foam. Suitable for MicroLab, MicroLoop, JAEGER SpiroUSB, JAEGER Flow Screen, JAEGER SpiroPro APS pro and EcoScreen. Also for Spirometer Vitalograph. Disposable articles.The foam used is fine-pored, thus soft and comfortable to wear. Color of the pads: grey. Scope of delivery: One bag with 100 piecesevidENT-Shop Article 336Original number 892121.

Mouthpiece for all JAEGER lung function devices, e.g. JAEGER Flowscreen (JAEGER original number 847690), also suitable for ZAN100 by nSPIRE (article 93-202/S13(100)).Disposable article. Dimensions: Inner diameter: 24 mm, outer diameter: 26 mm, length: 75 mmScope of delivery: One bag with 100 piecesevidENT-Shop Article 219

Mouthpiece for spirometer from Schiller and Bosch Spirometer: SP20, SP30 and Spiro 601 and CareFusion Spiro USB, PulmoLife, MicoLab, MicroLoop, Mico I, MicroDiary, Micro Peak, Type 36-PSA1000Disposable. Dimensions: ID 28 mm, OD 30 mm, length 65 mm Scope of delivery: 100 piecesevidENT-Shop Article 778
