Disposable electrodes for ECG and diagnostics

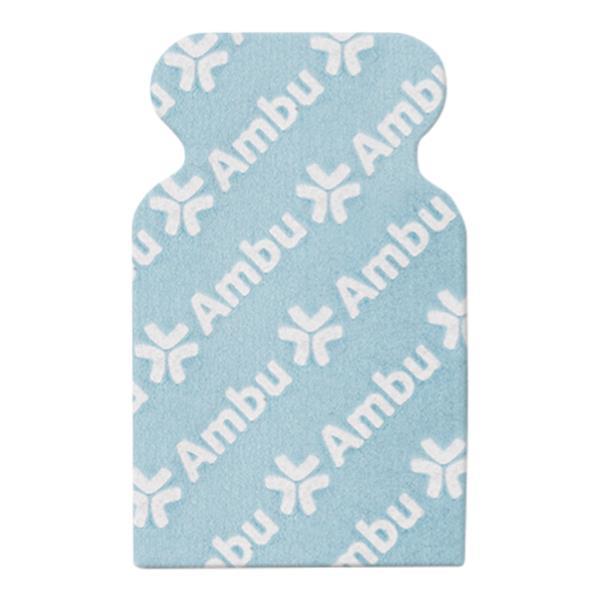

Ambu® WhiteSensor 0315M diagnostic electrodes with tab connection

The WhiteSensor 0315M is equipped with fixed gel and offers practical handling with its 10 electrodes per carrier. The electrode design prevents the electrode from detaching to the greatest possible extent, even if the cable adapter is twisted. The electrode is radiotranslucent and conditionally MRI safe.All Ambu electrodes are disposable for hygienic reasons.The WhiteSensor 0315M electrodes match the SKINTACT RT-34 diagnostic electrodes for resting ECG in all features. Sensor material: Sensor: Silver/silver chloride (Ag/AgCl). Gel type: Solid gel. Sensor area: 546 mm². Dimensions: length x width in mm: 21 x 34, skin contact area: in mm 21 x 26. 10 pieces /card.Scope of delivery: 1 bag with 100 pieces

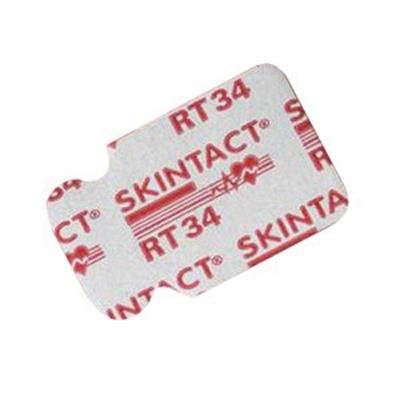

Skintact RT-34 Easitab connection - Diagnostic electrodes for resting ECG

These electrodes are no longer available in the evidENT Shop. As an alternative, we offer the Ambu® WhiteSensor 0315M diagnostic electrodes. These correspond in all properties to the SKINTACT RT-34 diagnostic electrodes for resting ECG.You will find the WhiteSensor electrodes below, under "Similar products".SKINTACT RT-34 Diagnostic electrodes for resting ECG. The SKINTACT Easitab system - your best choice for an excellent and safe resting ECG: SKINTACT Easitabs are designed for diagnostic 12-channel resting ECGs. Easitabs are disposable products. They reduce the risk of cross-infections as they can occur with traditional suction cup electrodes. As the name suggests, Easitabs are easy to use. They provide reliable, high-quality recordings and are suitable for all types of patients. All SKINTACT diagnostic electrodes for resting ECG comply with the ANSI/AAMI standard EC12:2000 for pre-gelled ECG electrodes. Gel: Aqua-Tac. base material: paper/PET. Adhesive: Gel.Dimensions: Length x width in mm: 22 x 34, 10 pieces /cardScope of delivery: 1 bag with 100 piecesevidENT-Shop Article 464

Ambu® WhiteSensor 4535M - ECG Electrode - Single Use

The Ambu WhiteSensor 4535M features a wet gel with good adhesion to ensure a good signal quality during short-term ECG monitoring applications. Thanks to the flexible foam backing material, the electrode ensures ease of use and comfort during application. It is conveniently presented with 3 pieces per strip.Highly conductive wet gelGood adhesionComfortable foam backingSensor material: Silver, silver chloride (Ag/AgCl)Gel system: Wet gel Dimensions: Electrode size (L x W max. in mm): 32 x 44 mm, adhesive area: 1.079 mm²Scope of delivery: One bag with 60 piecesevidENT-Shop Article 794

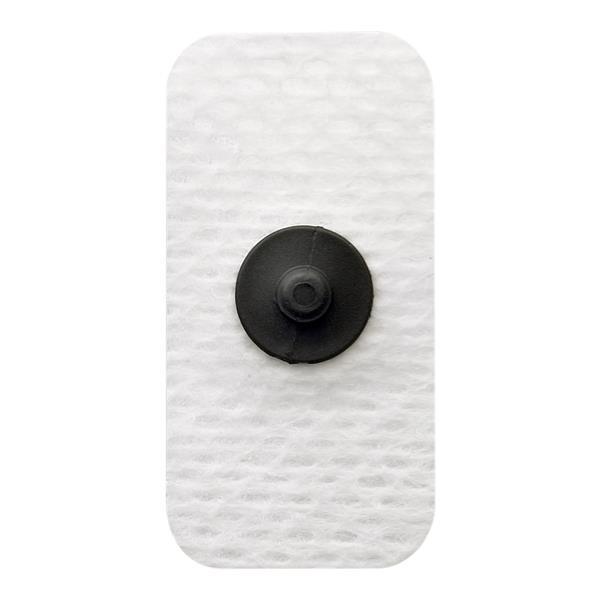

Ambu® WhiteSensor 40713 ECG electrodes

The Ambu WhiteSensor 40713 is a skin-friendly small fixed gel electrode for children and slim adults with stable ECG transmission.Thanks to its breathable fabric material, the electrode offers a high level of wearing comfort during the examination. The electrode is radiotranslucent and conditionally MRI safe. Also suitable for ABR screening with the QScreen from Path Medical and the Madsen Accuscreen.All Ambu electrodes are disposable products for hygienic reasons.Sensor material: Sensor: silver/silver chloride (Ag/AgCl). Gel type: Chloride-based, biological adhesive gel. Sensor area: 722 mm². Dimensions: length x width in mm: 19 x 38, skin contact area: in mm 19 x 38. Scope of delivery: bag with 3 piecesevidENT-Shop Article 575

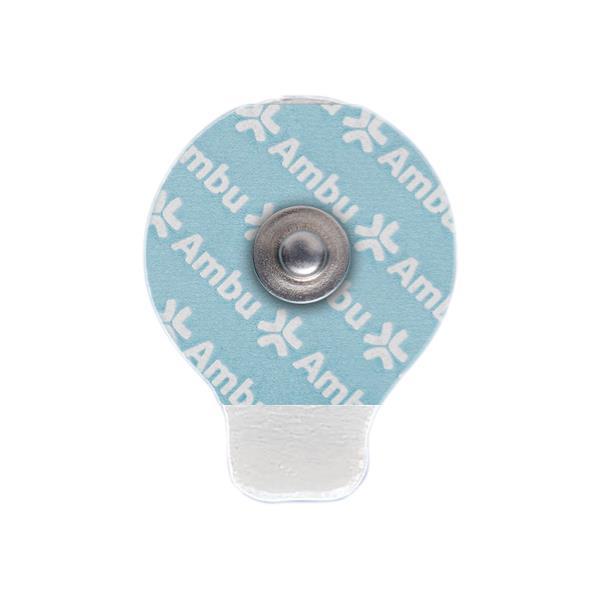

Ambu® WhiteSensor WSP25 ECG electrodes

The small Ambu WhiteSensor WSP25-00-S/50 offers a highly conductive solid gel with very good adhesive properties and stable signal quality for pediatric use. Thanks to its flexible foam material and drop-shaped design, the electrode ensures a good fit, easy handling and high wearing comfort. It is an alternative to the Kendall H124SG electrode. All Ambu electrodes are disposable for hygienic reasons.PVC-free, latex-free, biocompatible. Connections stainless steel push button.Sensor material: silver, silver chloride (Ag/AgCl); gel type solid gel. Sensor area 44 mm²Dimensions: Electrode size (L x W max. in mm): 32 x 25 mm. Scope of delivery: A bag with 50 piecesevidENT-Shop Article 576

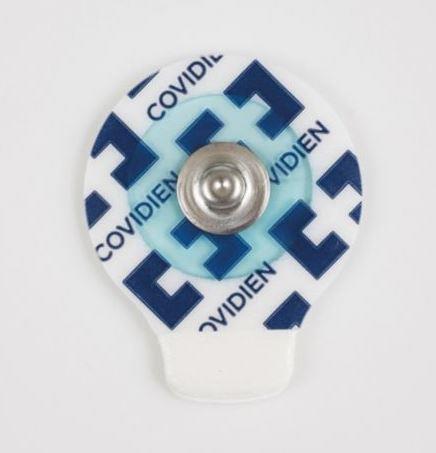

Kendall H124SG - ECG Electrode - Single Use

Kendall™ H124SG from Cardinal Health is an electrode suitable for ECG monitoring as well as neurological and paediatric applications.The Kendall™ H124SG is a very small electrode with a conductive, well-adherent solid gel to ensure good signal quality during use. The flexible foam backing and round shape provide a snug fit for most patients, ease of use and maximum comfort during application.Sensor material: Silver, silver chloride (Ag/AgCl); gel type solid gel.Dimensions: Electrode size (L x W max. in mm): 30 x 24 mm. REF 31.1245.21Scope of delivery: One bag with 50 piecesevidENT-Shop Article 895

3M Skin Prep Abrasion Band 2236 for skin preparation

The 3M™ Skin Prep Abrasion Band is used for optimal and gentle skin preparation for the best possible drainage quality. The abrasion band is a gentle abrasive material for removing the upper non-conductive skin layer. Thus it enables a high quality drainage. In two studies, a significantly reduced skin resistance could be demonstrated by using the 3M Abrasion Band. When used correctly, the 3M abrasive band made of fine sandpaper material protects the patient's skin and minimizes skin irritations. Application: A 2 to 3 cm long piece is removed from the dispenser and gently wiped over the area where an electrode is to be placed. The electrode with the gel side is then immediately glued to the treated area. Manufacturer: 3M, manufactured in Canada. Manufacturer number 2236.Dimensions: width: 3/4 inch (18,1 mm), length: 196 inch (5 meters)Scope of delivery: 1 rollevidENT-Shop Article 468

NUPREP Skin Preparation Gel, medium strength, granular

NUPREP is a modern, medium strength granular skin preparation gel and is used to reduce the electrical resistance of the skin and thus improve the dissipation of electrical potentials. Applicable e.g. for EEG examinations, evoked potential recordings (ERA, BERA), electro-nystagmography and ECG stress tests. Also recommended for sensitive skin, such as premature babies, as it does not cause skin irritation. Recommended by Interacoustics for ABR measurements. There with the order number SPG15 Gel.Contents of the tube: 114 gScope of delivery: 1 tubeevidENT-Shop Article 39

EVERI abrasive skin preparation paste, 160 ml bottle

Abrasive, granular preparation paste for the reduction of skin resistance. For use in EEG investigations, derivations of evoked potentials EP (ERA, BERA), EMG, ECG and for electro-nystagmography.Bottle capacity: 160 mlScope of delivery: 1 bottleevidENT-Shop Article 8
